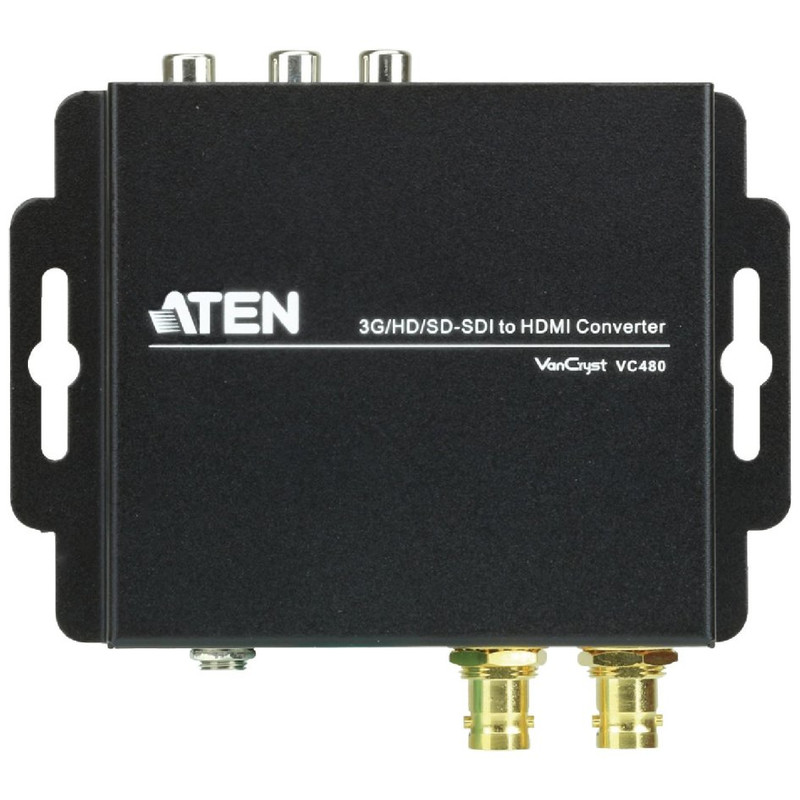

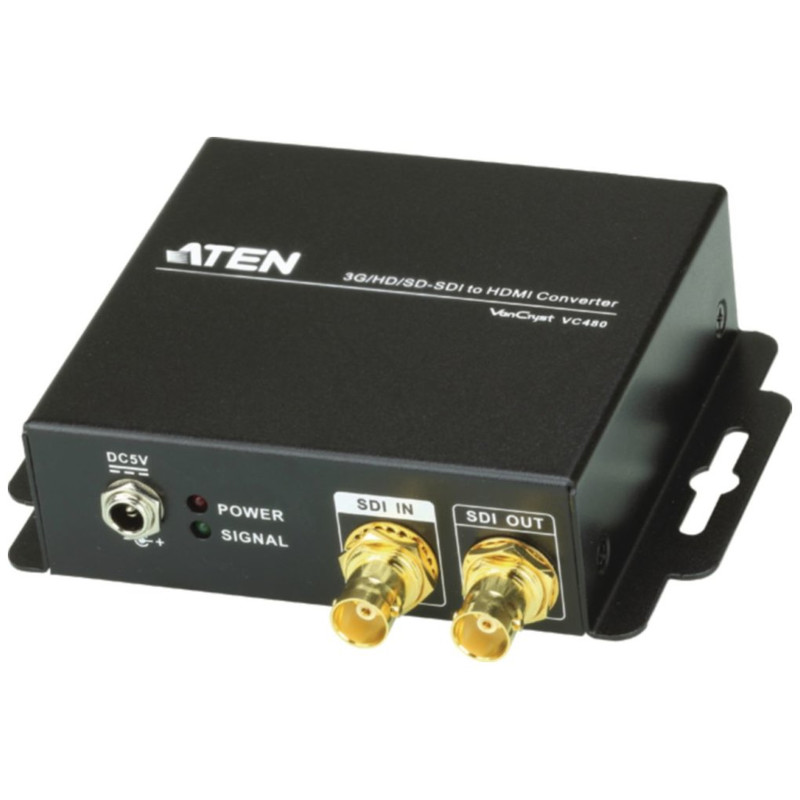

SDI to HDMI converter

SDI to HDMI converter

Conversion of a SDI input signal into a HDMI format without loss in real time

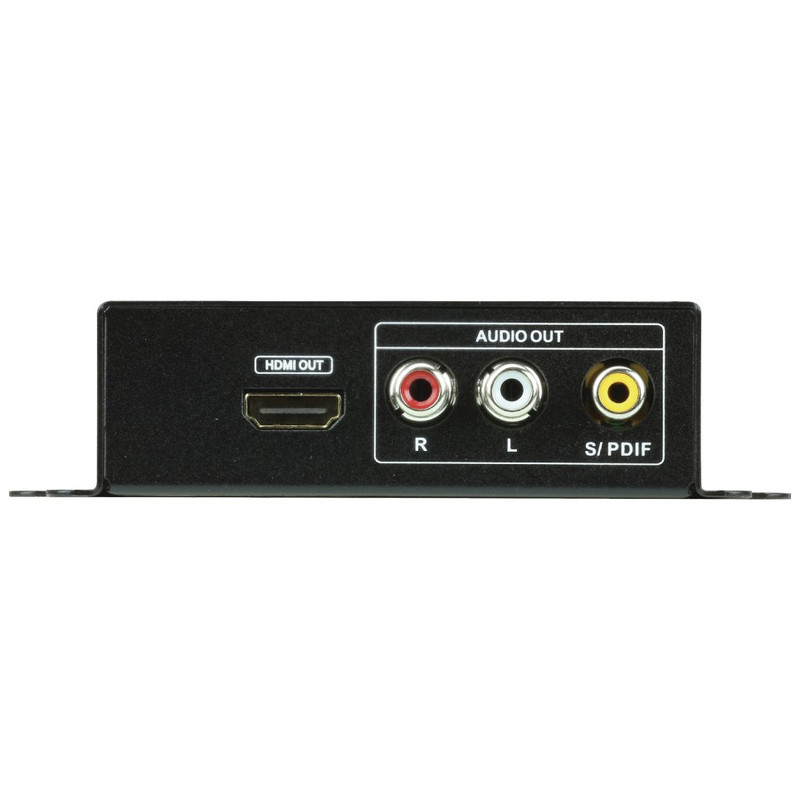

Supports analogue stereo and digital sound output via coaxial connection
HDMI (deep colour)

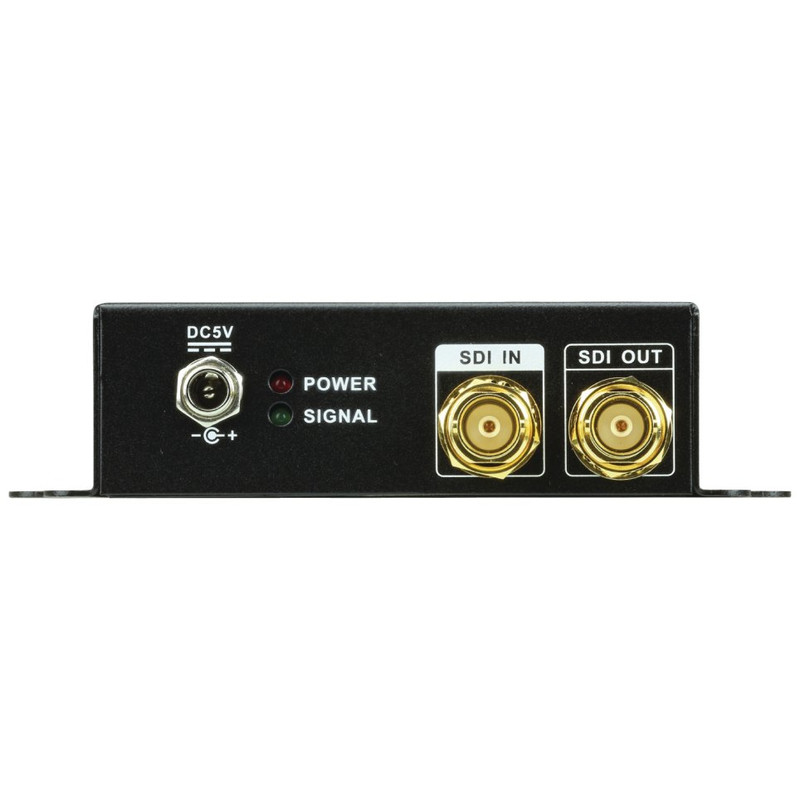

LED display for power supply and signal status
SDI transfer paths up to 90 m (3G-SDI), 150 m (HDSDI) and 300 m (SD-SDI) via RG6
Supports SD-SDI (SMPTE 259M, up to 270 Mbps)
Supports HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
Supports 3G-SDI (SMPTE 424M, 425M Level A, B, up to 2.97 Gbps)
Supported image formats: 525i@59.96, 625i@50, 720p@23.98/24/25/29.94/30/50/59.94/60, 1080i@50/59.94/60
1080p@23.97/24/25/29.97/30/50/59.94/60, 2048 x 1080
Buffered, looped through output for improved monitoring
Supports 8 sound channels with 48 kHz sampling rate
Automatic recognition of the signal type 3G/HD/SD-SDI
Re-timing of SDI signals for cascade connection to extend the transfer paths
Mechanically secured plug for the power supply for interruption-free data transfer

Interfaz de host: BNC
Interfaz de salida: HDMI, BNC
Voltaje de entrada: 5 V
Color del producto: Negro
Intervalo de temperatura operativa: 0 - 40 °C
Intervalo de temperatura de almacenaje: -20 - 60 °C
Intervalo de humedad relativa para funcionamiento: 20 - 90%
Ancho: 108,7 mm
Profundidad: 123 mm
Altura: 30,5 mm
Peso: 290 g




- Interfaz de host: BNC
- Interfaz de salida: HDMI, BNC
- Ancho: 108,7 mm
- Profundidad: 123 mm
- Altura: 30,5 mm
- Peso: 290 g
- Voltaje de entrada: 5 V
- Intervalo de temperatura operativa: 0 - 40 °C
- Intervalo de temperatura de almacenaje: -20 - 60 °C
- Humedad relativa de funcionamiento: 20 - 90%
- Color del producto: Negro
