BAREBONE GIGABYTE BRIX BACE-3160 CEL S HD2.5 S MEMO 2USB3 HDMI WF BT LECT VES

BAREBONE GIGABYTE BRIX BACE-3160 CEL S HD2.5 S MEMO 2USB3 HDMI WF BT LECT VES

ESPECIFICACIONES TÉCNICAS

Dimension 56.1 mm x 107.6 mm x 114.4 mm (2.21" x 4.24" x 4.5")

Motherboard Size 100 x 105 mm

CPU Intel®, Celeron®, Processor J3160 (2M Cache, up to 2.24 GHz)

Memory
1x SO-DIMM DDR3L 1.35V slot1066/1600 MHzMax. 8GB

LAN Gigabit LAN (Realtek RTL8111H)

Graphics Intel®, HD Graphics 400

Audio Realtek ALC255

VGA Resolution (Max.) 1920 x 1200 @60 Hz

HDMI Resolution (Max.) 3840x2160 @ 30 Hz

Expansion Slots 1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

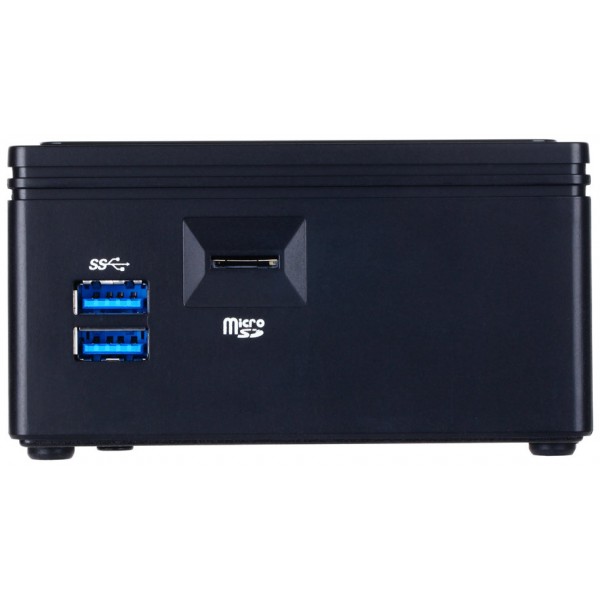

Front I/O
2x USB 3.01 x Micro SD card slot

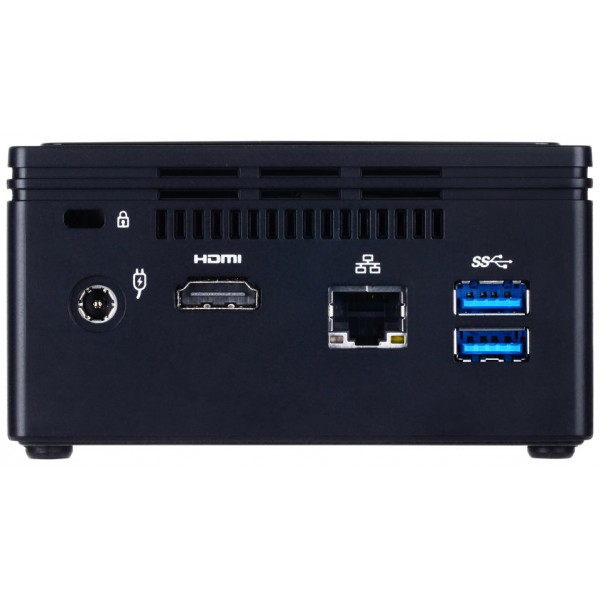

Rear I/O
1 x HDMI2 x USB 3.01 x RJ451 x DC-In1 x Kensington lock slot

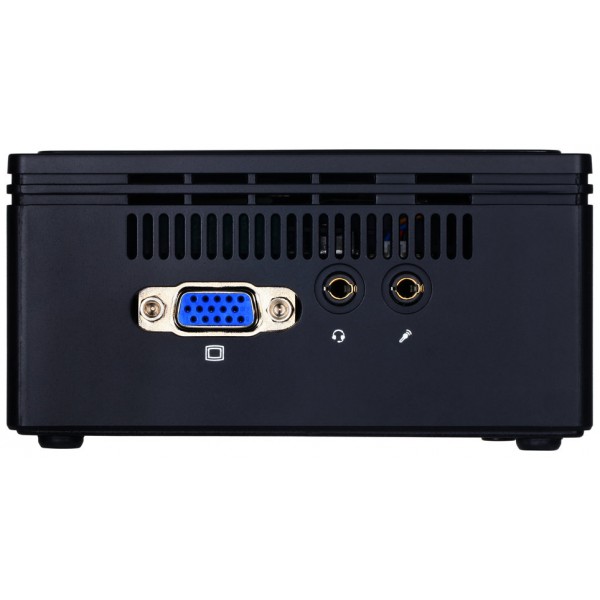

Side I/O
1 x VGA 1 x headset phone jack1 x Mic phone jack

Storage Supports 2.5&rdquo, thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3)

Power Supply
Input: AC 100-240VOutput: DC 19V2.1A

VESA
Bracket includedSupports 75 x 75 and 100 x 100 mm

Support OS
WIN7 64bit* Please download the "Windows USB Installation Tool" from GIGABYTE´s website and install it before installing Windows 7.WIN8.1 64bitWIN10 64bit

Environment
System Environment Operating Temperature: 0°,C to +35°,CSystem Storage Temperature: -20°,C to +60°,C
